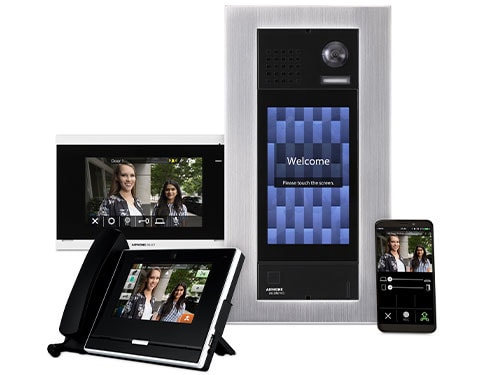

IXG Series IP Multi-Tenant Video Intercom
Simple. Sophisticated. Security.
The IXG Series provides security you can trust. This simple yet sophisticated way to connect a variety of buildings unlocks the unlimited possibilities for securing any multi-tenant and mixed-use properties.
Our Business Management System (BMS) is designed with both dealers and property managers in mind. The dealer admin portal makes for simple setup and the property manager portal makes managing tenant updates easy.
Expanded Solutions
Unique buildings with mixed-use properties need a streamlined method to provide an all-encompassing security solution throughout the entire complex. Integrate the IXG Series system with the AC Series, our new access control system for the next level in entry control. Plus, the modern touchscreens, optional elevator lift controls, additional guard stations, gate controllers, ADA/t-coil compatible stations, and a cloud-based mobile app are just a few things that delight tenants and property managers, alike.

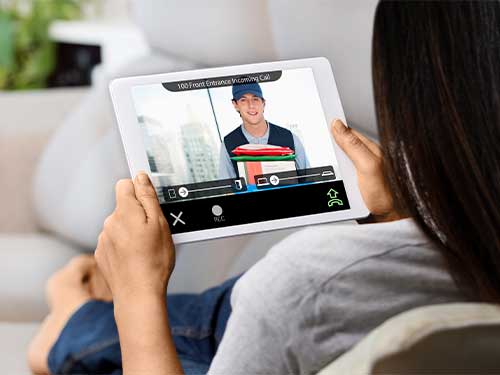

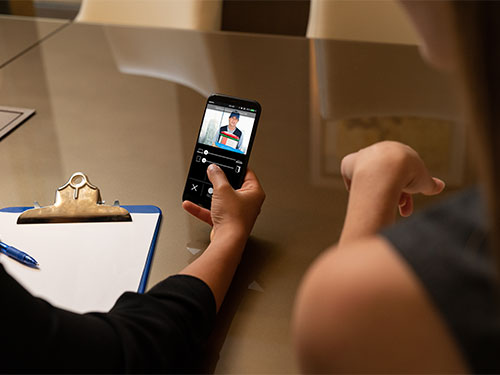

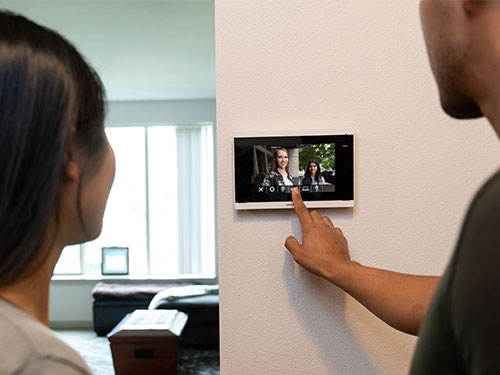

The cloud-based app is available for those who need on-the-go security. Different than other apps, the IXG Series mobile app can be used with or without an interior door station. This flexibility is perfect in smaller applications where tenants may only want the app to screen their visitors.
The IXG Series provides reliability and quality you've come to expect from Aiphone, with access to feature-rich benefits of an IP video intercom with the versatility of a multi-tenant solution. This is the one system you and your customers need for any multi-tenant security applications.
Save and download lists to include with proposals.

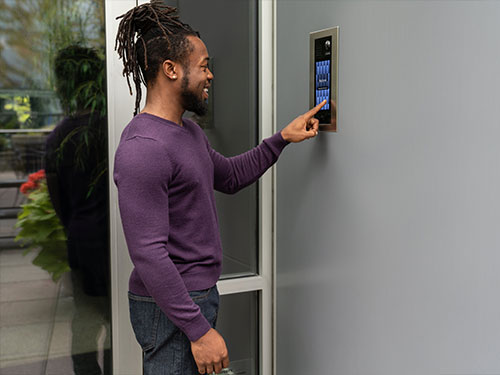

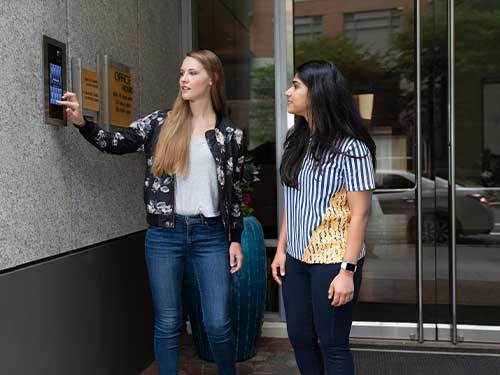

- Touchscreen entrance panel
- Cloud-based app (fees may apply)
- Optional elevator lift control adaptors – up to 16
- Built-in HID® reader connects to our access control

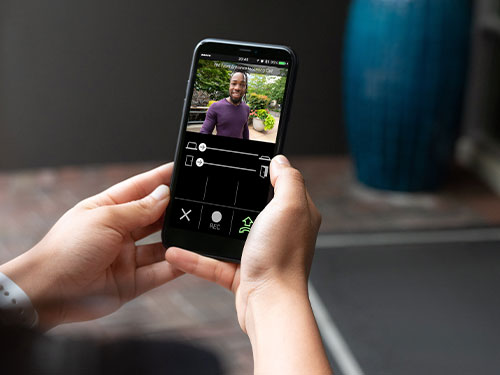

- Unlock entrances remotely with tenant mobile app
- Modern style with rugged IP65 and IK08 ratings

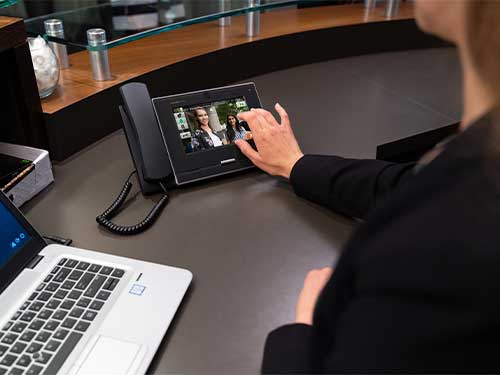

- Add emergency stations for guard and entrance monitoring
- T-coil compatible and two-way video communication with guard stations
- Two-way video communication with entrance and guard stations, includes privacy shutter
- Compatible with select IX Series stations
Power Source:
PoE (802.3af)
Network Interface:
10 BASE-T/100 BASE-TX Ethernet (RJ-45) Mobile App: Wi-Fi, 3G/4G
Network Protocols:
IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS
Bandwidth Usage:
Audio (G.722): 64Kbps x 2 for communication, 64 Kbps for monitoring
Video Streaming:
ONVIF® Profile S or RTSP
Communication:
Hands-free (full-duplex), push-to-talk (simplex), or handset (full-duplex)
Door Release:
IXW-MA: ten programmable dry contacts (four Form C, six Form A), 24V AC/DC, 500mA) IX-DV, IX-DVF, IX-DVF4A, IX-DVF-6, IX-MV7-B, IX-MV7-W, IX-MV7-HB, IX-MV7-HB-L, IX-MV7-HW-JP, IX-SSA: two Form C dry contact, 24V AC/DC, 1A IX-DVM, IX-EA, IX-RS-B, IX-RS-W, IX-SS-2G: Form C dry contact, 24V AC/DC, 1A
Wire Type:
Cat-5e or Cat-6
Distance:
Door Station, Emergency Station, Sub Station, Master Station, or to Network Adaptor to Network node: 330’
