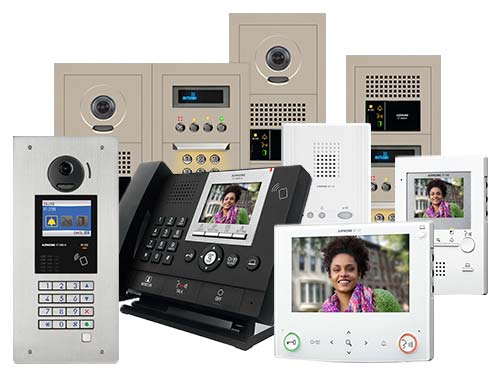

GT Series

Series

Analog Multi‑Tenant Video Intercom with Mobile App

The GT Series is a reliable entry security system ideal for tenants who live and work in vintage or modern buildings. Tenants and guards can easily identify visitors before granting entry into the building from a tenant station, concierge/guard station, or mobile app. Integrate the GT Series system with the AC Series, our new access control system, for the next level in entry control.

This multi-tenant video system offers a sleek and modern look, with a 7” video screen that displays crisp, clear detail that is supported with simple wiring – two common wires for audio, add two additional wires for video. Both video and audio entrance panels can be combined into the same system. Directory updates are easy when tenants change using remote programming through VPN or directly through NFC technology.

System Highlights
System Capacity
480
Entrance Stations
5,000
Tenant Stations
96
Video Guard Stations
QuikSpec Plus
Generate complete equipment lists 24/7!
Save and download lists to include with proposals.
Features
Remote Programmable
Entry Security
Selective Door Release

Standard System Features

  • Analog camera input provides additional surveillance of entry area (GT-DMB-N, GT-VB)
  • Combine both video and audio entrance panels in the same system
  • Mobile app can be used as a sub tenant station (requires GT-1C7W)
  • Unlock entrance from tenant station
  • Optional individual doorbell to ring tenant stations
  • Panic call switch for emergency calling to guard or concierge
  • Tenant stations can monitor the entryway (video system)

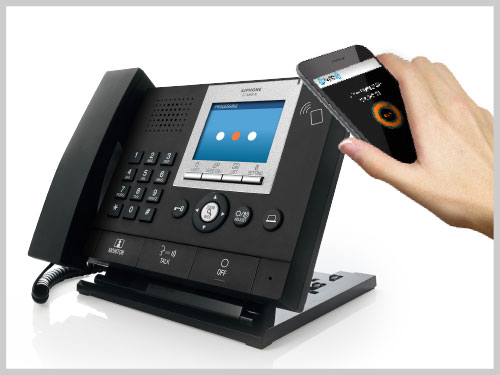

  • Tenant directory can quickly be updated with NFC-compatible stations (GT-DB-VN, GT-DMB-N, GT-MKB-N, and GT-BCXB-N)
  • Link data allows easy programming of multiple entrance and video guard stations
  • Setting via dip switch for digital systems provides faster and easier installation (GT-2C, GT1C7, GT1C7-W, GT-1M3)
  • Simple wiring with two common wires for audio and two additional wires for video

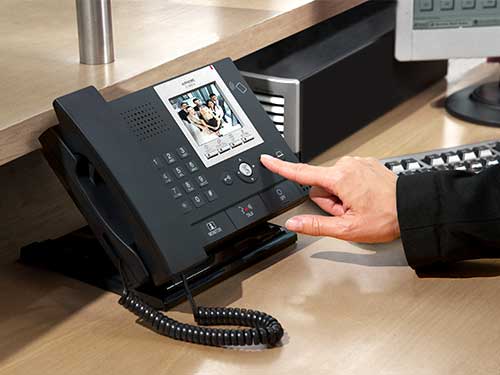

  • Video guard station(s) can be included to provide communication between office/lobby and tenants



Enterprise Features
Same features as a Standard System, plus:

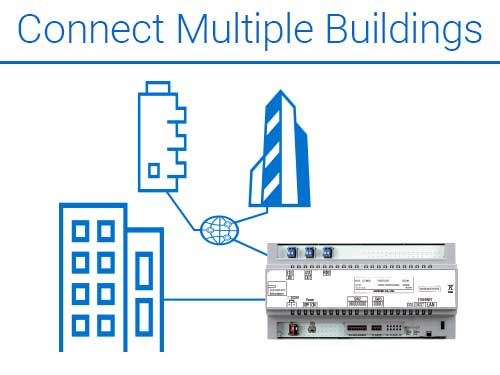

  • Network adaptor (GT-MCX) connects multiple GT Series systems together for building-to-building communication
  • Up to 480 entrance panels, 96 video guard stations, and 5,000 tenant stations
  • IPv4 or IPv6 network protocols
  • Extend wiring distance across buildings and systems

Specs

Power Source

24V DC – use specified number of PS-2420ULs per system configuration

Network Protocols

IPv4, IPv6, TCP, UDP, IGMP, MLD, DHCP, NTP, DNS (protocols are for systems using GT-MCX network adaptor)

Communication

Hands-free from entrance station to tenant station

Capacity (Single Building)

Max. 16 entrance stations per system
Max. 4 video guard stations per system
Max. 500 tenant stations per system
Max. 4 tenant stations per unit

Capacity (Multi Building)

Max. 480 entrance stations per system
Max. 96 video guard stations per system
Max. 5,000 tenant stations per system

IP Rating

IP54 (DMB)

IK Rating

IK07 (DMB)

Material

Zinc diecast (modular entrance stations)
14-gauge stainless steel (GT-DMB-N)

Mounting

Surface or flush mount using appropriate back box

Wire Type

Two sets of 2-cond., PE insulation (two common buses for audio and video)
Aiphone #872002, 2-cond., PE insulated, non-shielded, 11.05 pf/ft (audio)
Aiphone #871802, 2-cond., PE insulated, non-shielded, 11.05 pf/ft (video)

Distance

GT-BC to farthest entrance station: 980'
GT-BC to farthest tenant station (audio): 980'
GT-VBC to farthest entrance station: 980'
GT-VBC to farthest tenant station (video): 500'
