System Highlights

Emergency Solutions

Series

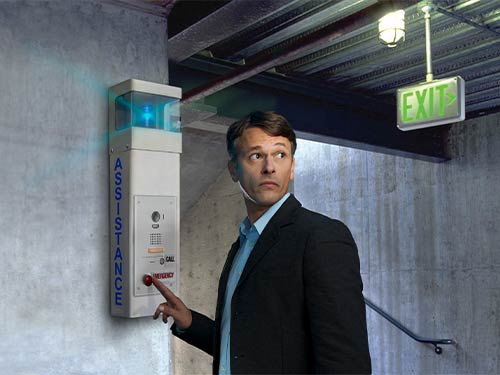

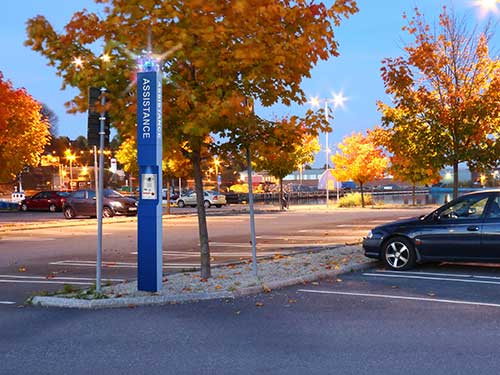

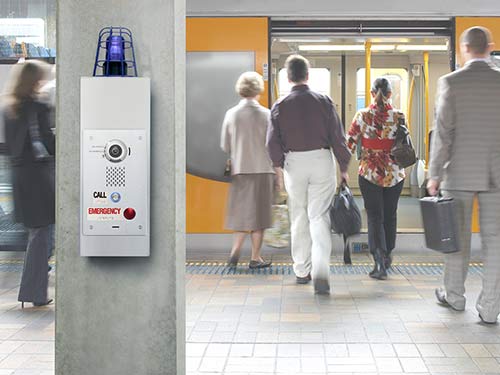

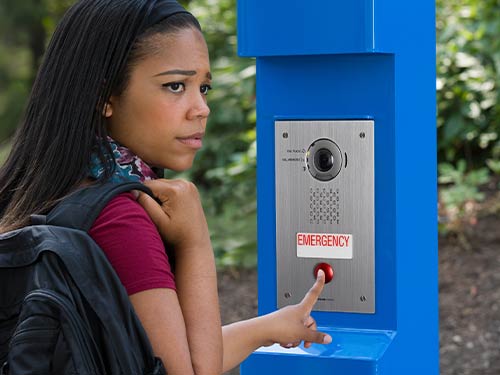

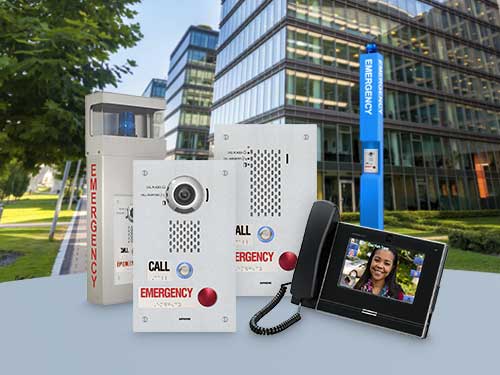

Emergency Towers and Wall Boxes

Aiphone emergency solutions include towers and wall boxes featuring built-in UL Listed electrical boxes. These boxes easily satisfy local electrical codes and include integrated mounting hardware for power supplies or accessories. An optional CCTV camera arm module can be included on the modular towers to provide a broad view of the video intercom's identifying view. Easily wire any tower using the rear access panels to pull wire from top to bottom. Aiphone's unique modular tower design saves money on shipping and reduces installation time and expenses. The lightweight durable all-in-one aluminum tower makes installation a snap. Choose Aiphone's specialized emergency solution intercom system for emergency communication needs. The IX Series is ideal for facilities looking for a peer-to-peer network solution. Add access control and communication for a comprehensive security solution.

Freakishly Reliable

Aiphone is proud to be a rare, two-time winner of the prestigious Deming Prize for quality management and manufacturing processes. Our ISO Certified process and rigorous standards result in some of the most reliable products in the industry. Aiphone products routinely last for years, only being replaced when the application outgrows the system capacity.

System Highlights
QuikSpec Plus
Generate complete equipment lists 24/7!
Save and download lists to include with proposals.
Features

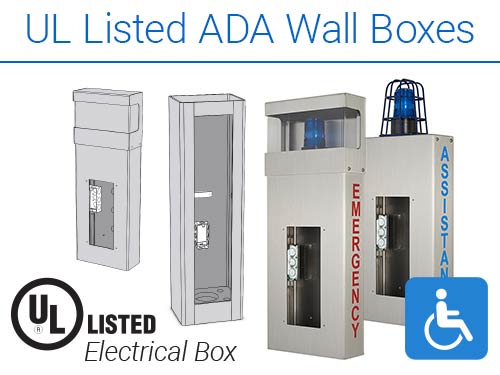

  • Convenient UL Listed electrical box integrated inside wall box and modular towers
  • Modular tower design provides lower freight costs and easier assembly than traditional, non-modular towers
  • Lightweight all-in-one aluminum tower for simple installations
  • Optional CCTV camera arm, when added to modular towers, provides an additional line of sight to better assess unfolding situations
  • Rear access panels on the back of each tower module make it easy to route wires up and down the tower
  • Variety of tower configurations to meet facility needs (size, lettering, color)
  • Beacon/strobe light on top of tower and wall box is always lit and flashes during an emergency call in
  • Integrated mounting hardware in towers and wall boxes to quickly install accessory products safely inside unit
  • Slim, 4″ depth of wall box allows for proper ADA mounting height
  • Compatible with IX Series emergency stations

Specs

Material

Modular Tower: 1/4" zinc treated steel with powder coating
Lightweight Aluminum Tower: Aluminum 6061-T6
Wall Box: 12-gauge stainless steel

Accessory Mounting Hardware

Modular Tower: Tower: 4 mounts in lower and upper modules - External threads (male: M3 x .05)
Wall Box: Single mount - Internal threads (female: M3 x .05)

CCTV Camera Arm Thread

Universal pipe thread pattern - 1.50" NPT threading x 1" long

Light/Strobe Power Source

DC 24V, use PS-2420UL


Components
Communication Type
Station Type
Component Feature
